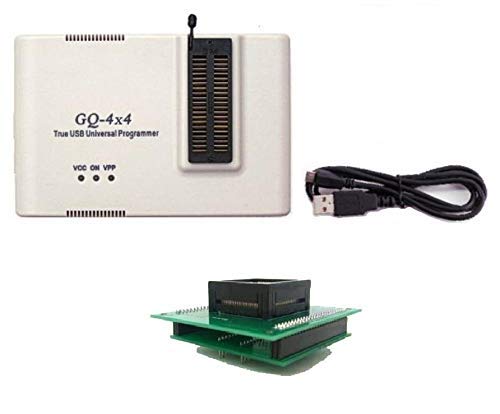

This complete package contains:
one GQ-4X programmer with USB cable
one ADP-095 Altera CPLD PLCC84 to DIP JTAG adapter
Details:
GQ-4X is the top seller model of True USB GQ series Universal Programmer series developed by MCUmall Electronics Inc Canada.
GQ-4X Features :
Neat robust enclosure; 40pin ZIF socket, fully automatic; JTAG support; Fast mode SPI support;
Real True USB interface for both data transfer and power supply;
High speed; user-friendly; simplest-to-use;
Support Windows O/S XP 32bit 64bit, Vista 32bit,Vista 64bit; Window7/8/10/11 32bit and 64bit
Software update regularly by MCUmall Canada; free life-time software upgrade from MCUmall website;
Allows end users add in their own chips/devices easily to the software
Multi-languages capability (over 14 languages): Arabic,Czech,Dutch,English,Estonian,French,German,Greek,Hungarian,Italian,Spanish, Portuguese,Russian,Turkish
Support chip package: POSOP44, PSOP56, TSOP48,TSOP40,TSOP40,TSOP32,SOIC,PLCC84,PLCC44,PLCC32,FWH+16bit EPROM, AVR
Download latest software, user guide from MCUmall come website
ADP-095 Altera CPLD PLCC84 to DIP JTAG adapter:
This adapter is designed for all Altera CPLD PLCC84 chips with JTAG interface working with GQ-4X programmer.
With this adapter, user is able to program the Alter PLCC84 CPLD chip on GQ-4X ZIF socket directly. No ISP cable needed.
The chip should have JTAG feature in order to work with GQ-4X JTAG inter face.
Following PLCC84 chips works with this adapter: EPM3128A,EPM7128S etc.
