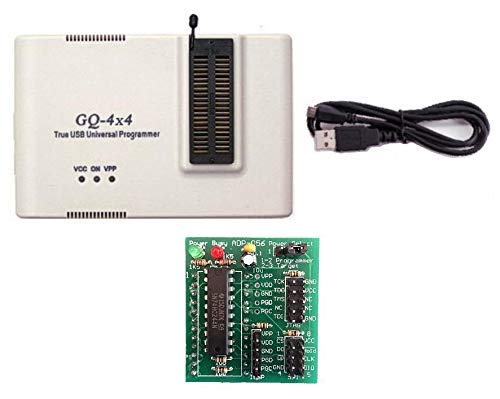

This complete package contains:
one GQ-4X programmer with USB cable
one ADP-056 JTAG/SPI in circuit programming
Details:
GQ-4X is the top seller model of True USB GQ series Universal Programmer series developed by MCUmall Electronics Inc Canada.
GQ-4X Features :
Neat robust enclosure; 40pin ZIF socket, fully automatic; JTAG support; Fast mode SPI support;
Real True USB interface for both data transfer and power supply;
High speed; user-friendly; simplest-to-use;
Support Windows O/S XP 32bit 64bit, Vista 32bit,Vista 64bit; Window7/8/10/11 32bit and 64bit
Software update regularly by MCUmall Canada; free life-time software upgrade from MCUmall website;
Allows end users add in their own chips/devices easily to the software
Multi-languages capability (over 14 languages): Arabic,Czech,Dutch,English,Estonian,French,German,Greek,Hungarian,Italian,Spanish, Portuguese,Russian,Turkish
Support chip package: POSOP44, PSOP56, TSOP48,TSOP40,TSOP40,TSOP32,SOIC,PLCC84,PLCC44,PLCC32,FWH+16bit EPROM, AVR
Download latest software, user guide from MCUmall come website

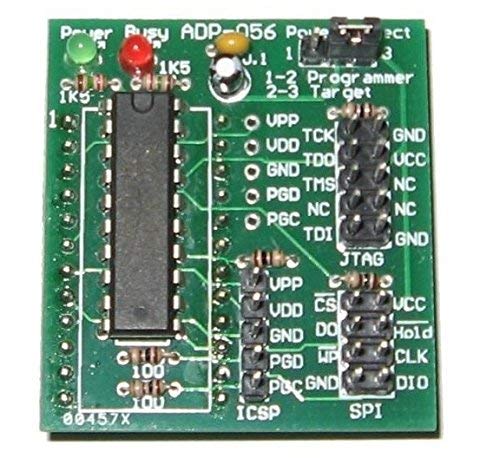

ADP-056 JTAG/SPI in circuit programming adapter:
This adapter is used to program the JTAG, SPI and PIC chip in circuit, like PC motherboard BIOS upgrade without remove the chip from motherboard.
There are many factors affect the ISP programming. The main issue is the poor signal quality since many circuit is not designed for the in-circuit-programming originally. The poor signal quality will cause the in-circuit-programming unstable and fail. The adapter is deigned for enhancing the signal quality when doing in-circuit-programming. It has a signal driver chip to make in-circuit-programming signal in better quality and programming stable. So that to increase the programming success rate.
It works with GQ-4X for JTAG, SPI and PIC chip ICSP programming, like motherboard upgrading for BIOS chip 25VF080.
